Trail wheels often fall into two categories—they're either heavy and durable or light and flexy. And because of this, a lightweight, wide-profile, and enduro-ready carbon wheel seems like something only found in a fairytale, but lucky for you, we made it a reality.

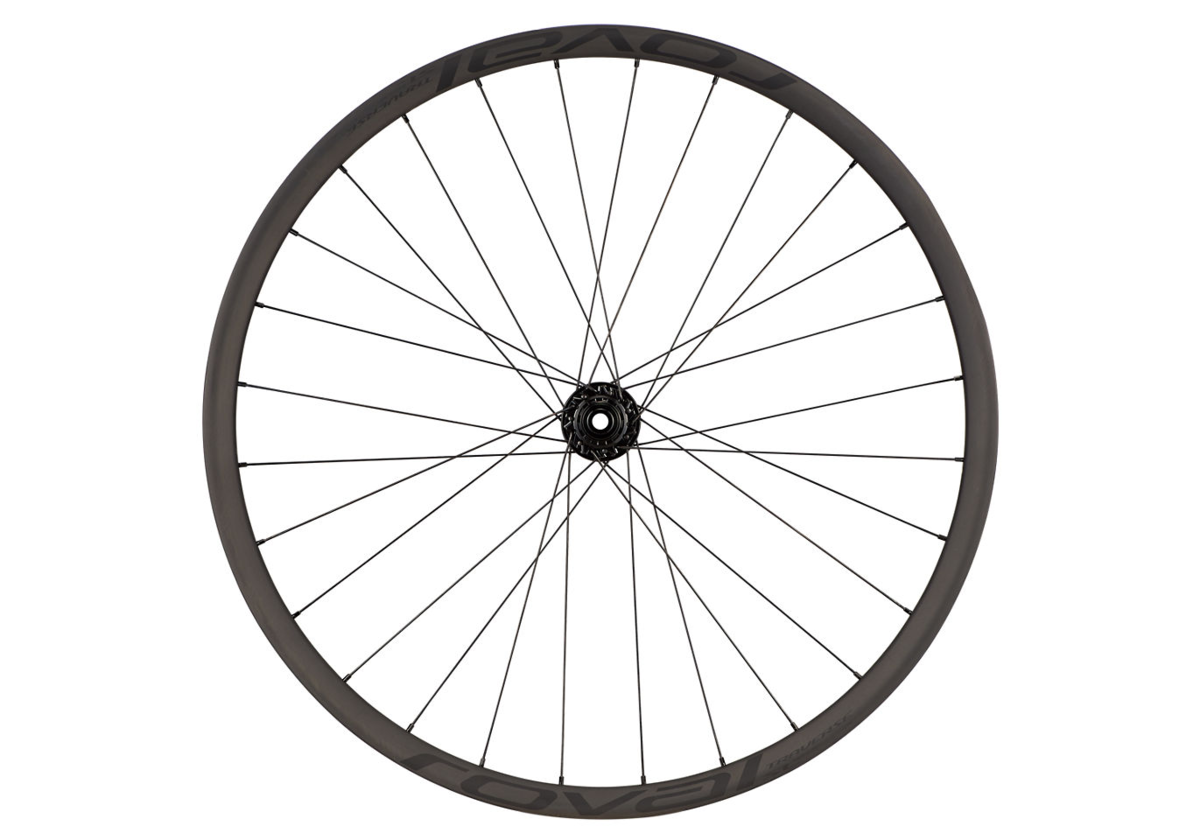

The Traverse SL Fattie 27.5 puts all the flickable, nimble features you need in an all-mountain wheel into one package, and it has the results to prove it. Along with light overall weight, stiffness, and durability, another top priority for the Traverse SL was ease of use. First off, we got rid of the creaky straight-pull spokes and corrosion-prone alloy nipples. Next up, we landed on 28 J-bend spokes, for both the front and rear wheels, that are all the same length—making it easy to find replacements if needed. And finally, we engineered a new hub design, with a wider profile and higher flange to aid in overall stiffness.
What's with the big-boned name, you ask? The Traverse SL Fatties may be wide, but with a 30mm inner rim width, they're far from the girth of a fat bike rim. But let's talk width. You've probably noticed that mountain bike rim widths have hovered between 19 and 23 millimeters for decades, and they've been long overdue for a change. In the search for a better wheel design, our engineers began testing 2.3- to 2.5-inch tires on 45-millimeter-wide fat bike rims to see what, if any, benefits could be found. It only took them a few rides to realize that the wider rims offered a variety of advantages, like adding additional tire volume, which better supports the tires in hard cornering, greatly improves traction because of the ability to run lower pressures, and noticeably increases rim stiffness. They did note that there is an occurrence of diminishing returns with increasing width, however, and after testing everything from 25 to 45mm, determined that a 30mm inner width is optimal.
After determining the width, we began designing the rim using the knowledge that we gained when developing the Control SL. With this, we started with our Zero Bead Hook technology that gets rid of the weak spot found in a traditional wheel and combined it with the wider profile to make a carbon rim that effectively dissipates forces. This way, you can take abuse from rocks without the worry of cracks or dents.
Ok, so they're strong, impact-resistant, and tire supporting-they must be heavy, right? Wrong. Even though "fattie"? is in their name, they're far from fat. To achieve this weight, we hand-build our rims to our own alloy hubs, using only the highest quality DT Swiss Competition Race spokes. Inside our hubs, you'll find DT Swiss 240 internals with a quick engaging 54t DT Swiss star ratchet system in the rear that allows you to power over rocks and roots without delay. And while machines do a pretty good job of building wheels, we choose professionally trained humans because they do so with an artistic touch that makes for minimal flaws. Whether you need a carbon wheelset to get you through an enduro stage or one to shred your local rock garden, the Traverse SL Fattie has you covered.
- Assembly Method: Hand-built
- Bearing Type: Sealed cartridge
- Every wheel includes tubeless valve stems in order to make tubeless set-up a touch easier.
- Nipple Type: DT Swiss Brass Pro Lock hexagonal
- Rear Hub: CNC-machined alloy body, high-quality DT 240 internals, and 54t quick engagement ratchet system cassette, includes SRAM XX1 11-speed freehub and 148 end caps.
- Rear Spoke Pattern: Two-cross
- Rim Material: Carbon fiber
- Rim Type: Carbon clincher, 2Bliss Ready, Zero Bead Hook design. Black graphic under clear coat.
- Rim Width: 30mm internal
- Roval Engineered J-bend hubshells have a single spoke length for each wheelset.
- Spoke Count: 28h Rear
- Spoke Type: DT Swiss Competition Race J-bend
|Rim||Carbon clincher, 2Bliss Ready, Zero Bead Hook design. Black graphic under clear coat|
|Brake Compatibility||6-bolt disc|
|Cassette Compatibility||SRAM XX1 11-speed|
|Axle||148 x 12mm|
|Hub||CNC-machined alloy body, high-quality DT 240 internals and 54t quick engagement ratchet system cassette|
|Spokes||DT Swiss Competition Race J-bend|
|Nipples||DT Swiss Brass Pro Lock hexagonal|
|Inner Rim Width||30mm|
|Extras||Tubeless valve stems|
* Subject to change without notice.
